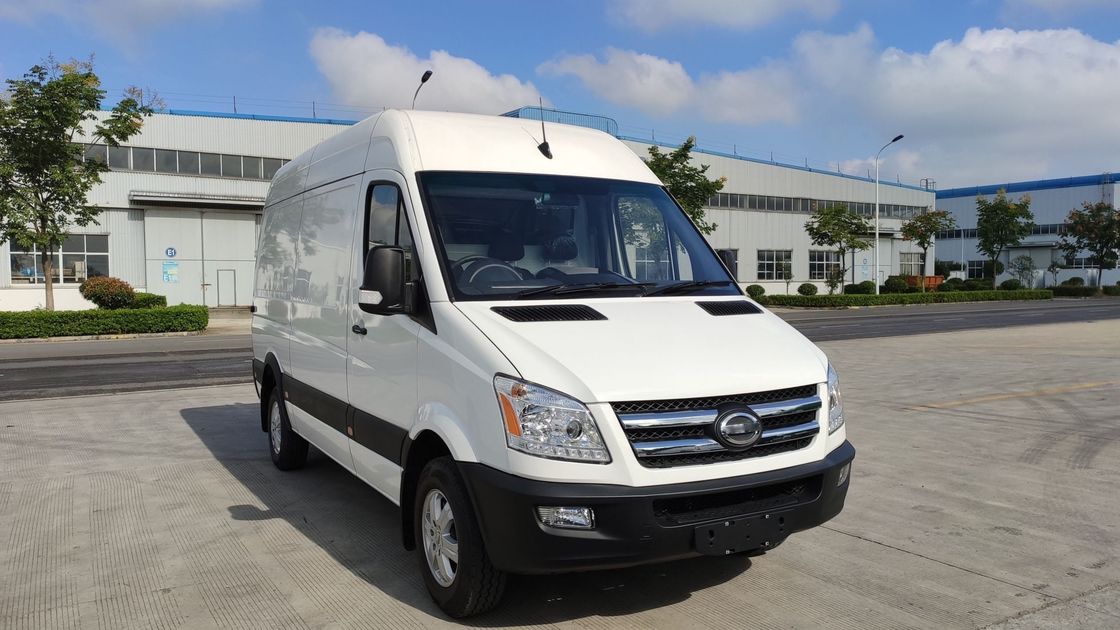

73.6kWh Electric Mini Cargo Van 110km/H Electric Freezer Van 288km Max Range

Place of Origin China
Brand Name AE
Model Number AE3500EVR
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details in whole vehicle package
Delivery Time to be negociated
Payment Terms T/T,L/C
Supply Ability to be negociated

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Maximum Power(Ps) ≤100Ps
Fuel Electric Battery Capacity 73.6kWh
Max Speed 110km/h Maximum Range 288km
Curb Weight/Gross Weight (KG) 2790 / 3500 Wheelbase (mm) 3665
Peak Power/torque (KW)/(N.m) 100 / 750
High Light

73.6kWh Electric Mini Cargo Van

,

110km/H Electric Mini Cargo Van

,

288km Electric Freezer Van

You can tick the products you need and communicate with us in the message board.
Place of Origin China Type Van
Brand Name AE3500EVR Fuel Electric
Max Range(km) 288km Fast/Slow charging Time
Max Speed 110km/h Maximum Torque(N.m) 750N.m
Wheelbase 3665mm Body Structure 4doors/2seats
Lenth*Width*Height(mm) 6040*2020*2650mm Tire Size 215/75 R16
Leave a Message
Place of Origin China Type Van
Product Description

Mini Electric Cargo Van Manufacture 110km/H Electric Freezer Van For Sale

ELECTRIC VAN GO BEYOND EXPECTATIONS

The AE3500EV CARGO VAN is the first proper, completely purpose-built mainstream electric van to go on sale in according with EU design requirements. Designed from the ground-up for electric power only, the AE3500EV CARGO VAN is compact, lightweight and can carry more than 1000kg payload.
AE3500EV(73.6KWH)
NO. : AE3500-20210825001
Basic parameters of the vehicle
Body parameter Vehicle model AE3500EVL AE3500EVR
Driver cabin left hand right hand
Ambient temperature(℃) -20~40
Body dimension (mm) 6040×2020×2650
Cargo dimension (mm) 3450×1780×2000
Wheelbase (mm) 3665
Curb weight/Gross weight (KG) 2790 / 3500
Approach/departure angle 21 / 17
Front/rear overhang 1020/1355
Front/rear wheeltrack 1720 / 1716
  Max speed (km/h) 110
Power performance Gradeability/climbing speed (%)/(km/h) 20 / 20
  Battery capacity (kWh) 73.6
  Cooling mode Liquid cooling
  Range (Km) 288
  Driving motor Permanent magnet synchronous motor
  Peak power/torque (KW)/(N.m) 100 / 750
  Driving mode Front motor, rear driving
Chassis Rear axle type Integral
  Front suspension type Horizontal spring-type independent suspension
  Rear suspension type Vertical three plates spring-type non-independent suspension
  Power steering type Electronic hydraulic power system
  Type specification 215/75 R16LT 12RP
Wheel and brake Wheel Aluminum alloy wheels/4 pieces
  Front/rear brake type Front disc, rear drum
  Parking brake Hand brake
  Body structure Monocoque
Body structure Door quantity 4
  Seat quantity 2

Essential details
Condition: New Place of Origin: Jiangsu, China
Steering: Right Type: Van
Emission Standard: Euro VI Fuel: Electric
Year: 2022 Maximum Power(Ps): ≤100Ps
Made In: China Gear Box: Automatic
Brand Name: AE Forward Shift Number: 4
Model Number: AE3500EVR Maximum Torque(Nm): ≥500Nm
Dimension: 6040*2020*2650 Wheelbase: ≥3500mm
Number of Seats: 2 Curb Weight: ≥2500kg
Cabin Structure: Integral body Drive: RWD
Front Suspension: Horizontal spring-type independent suspension Rear Suspension: Vertical three plates spring-type non-independent suspension
Steering System: Hydraulic Parking Brake: Manual
Brake System: Front disc+Rear drum Tire Size: R16
Airbags: 2 Sunroof: None
ESC(Electronic Stability Control System): Yes ABS(Antilock Braking System): Yes
Rear Camera: Camera Radar: Front 4+Rear 2
Steering Wheel: Normal Interior Color: Dark
Seats Material: Fabric Driver's Seat Adjustment: Manual
Copilot Seat Adjustment: Manual Headlight: LED
Car Entertainment System: Yes Product name: Electric Cargo Van
Touch Screen: Yes Daytime Light: LED
Drive type: RHD Max speed: 110km/h
Cabin: Single Range: 288km
Battery Capacity: 73.6kWh GVW: 3.5T
Seat quantity: 2 Door quantity: 4
