Lithium 115AH 72 Volt Club Car Golf Cart Electric Fire Fighter Truck
Product Details:
| Place of Origin: | China |
| Brand Name: | Customized |
| Model Number: | LS2040AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | in whole vehicle package |
| Delivery Time: | to be negociated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | to be negociated |
|
Detail Information |
|||
| Place Of Origin: | China | Fuel: | Electric |
|---|---|---|---|
| Battery: | 72V 115AH Lithium Battery | Motor: | 4/5/7.5KW AC Motor |
| Real Water Tank Capacity: | 250L | Minimum Turning Radius: | 4.5m |
| Max. Movement After Brake: | ≤4m | ||
| Highlight: | Lithium 72 Volt Club Car Golf Cart,Electric 72 Volt Club Car Golf Cart,115AH Fire Fighter Truck |
||
Product Description

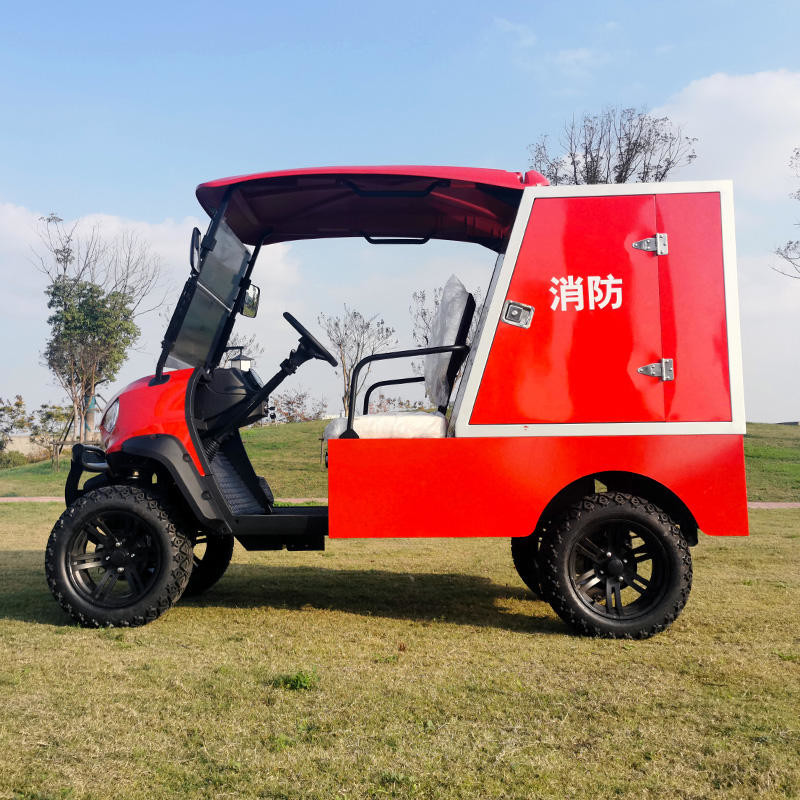

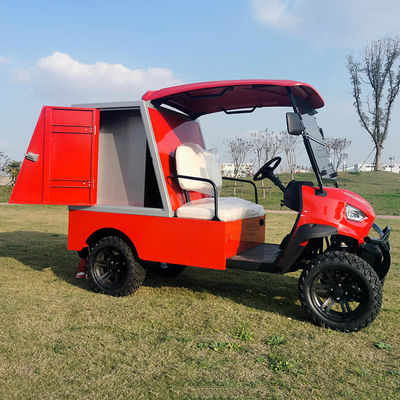

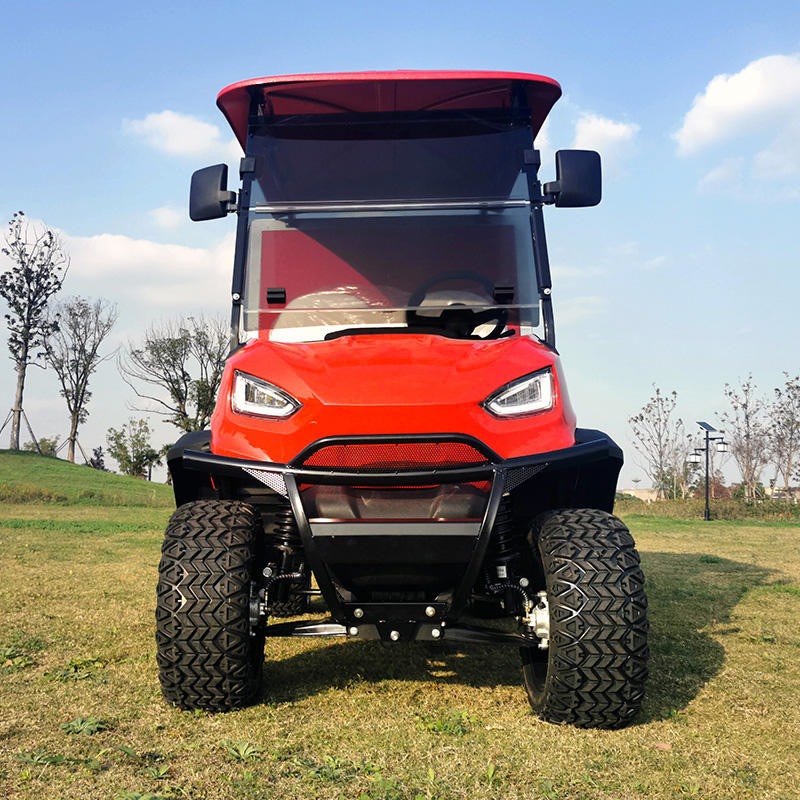

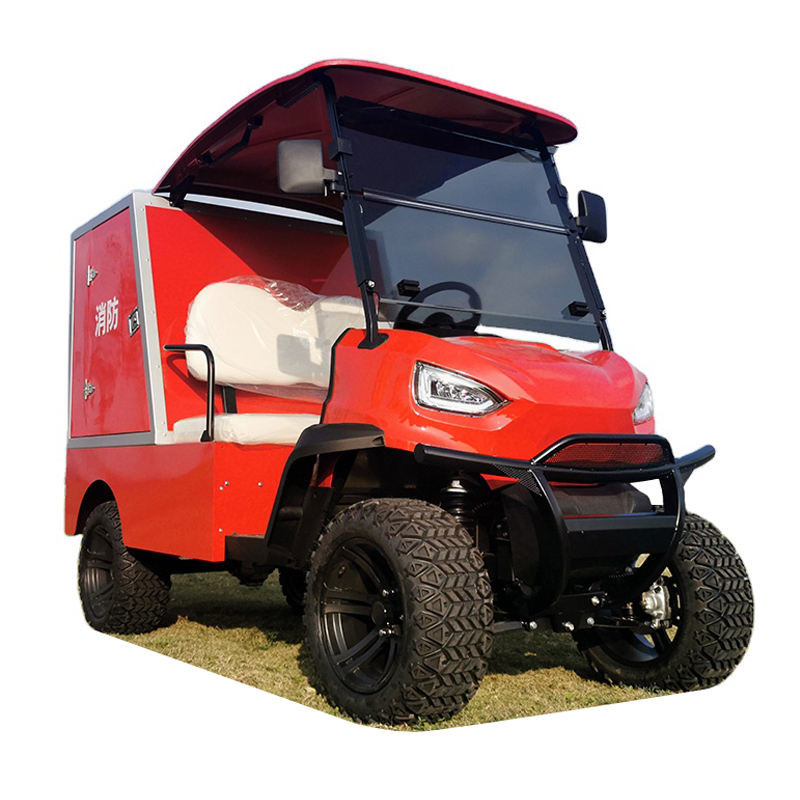

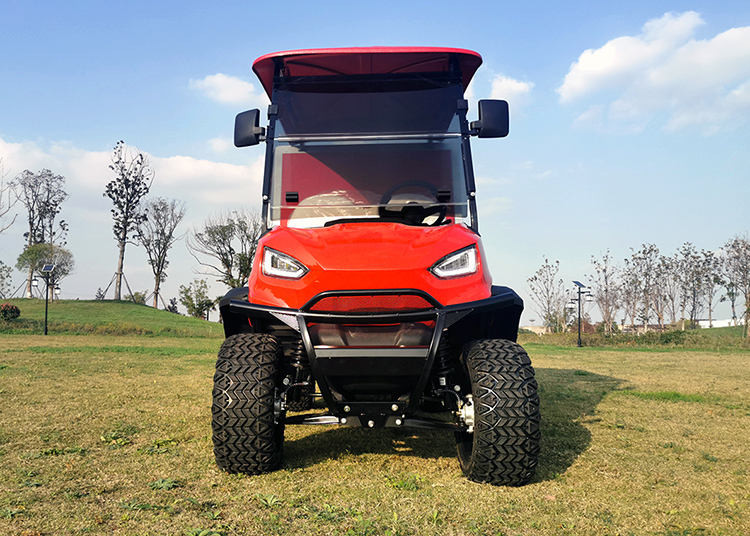

Small electric lithium 72v golf car fire fighter truck for emergency use

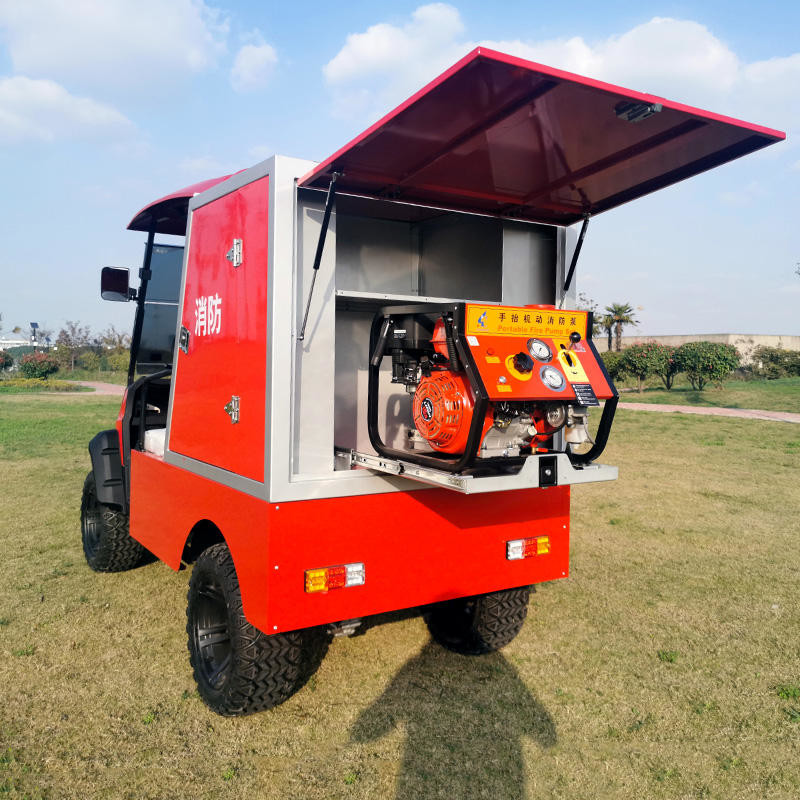

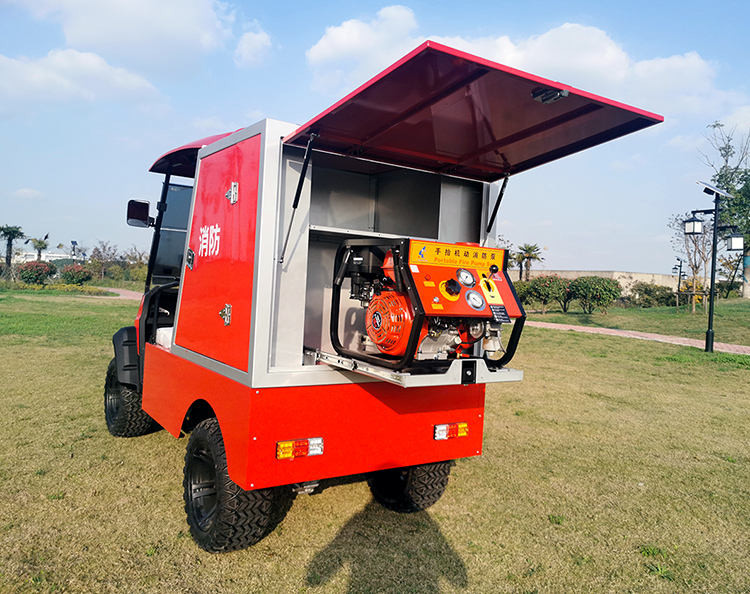

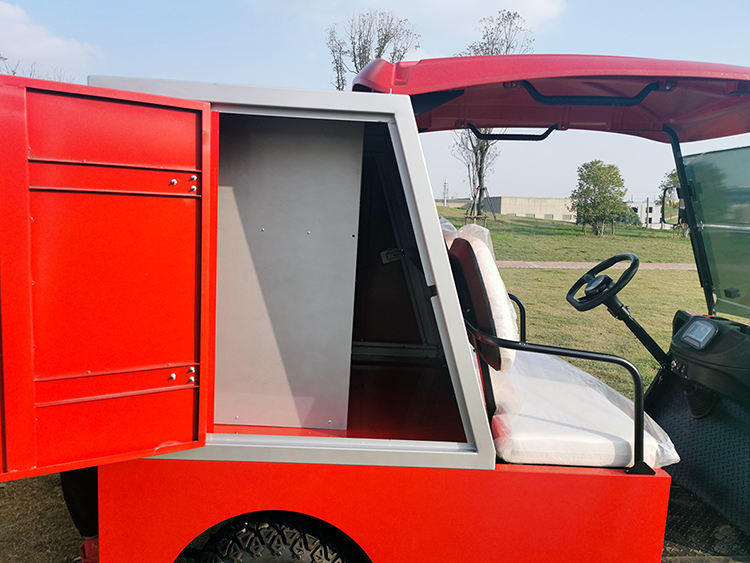

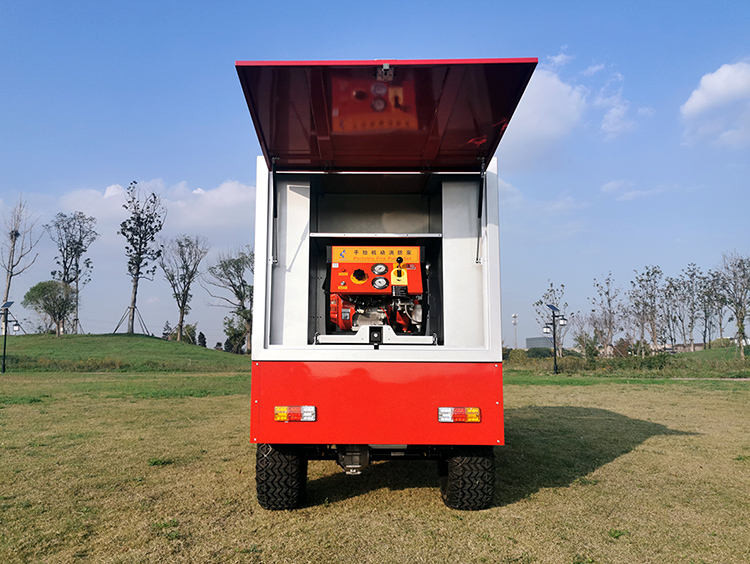

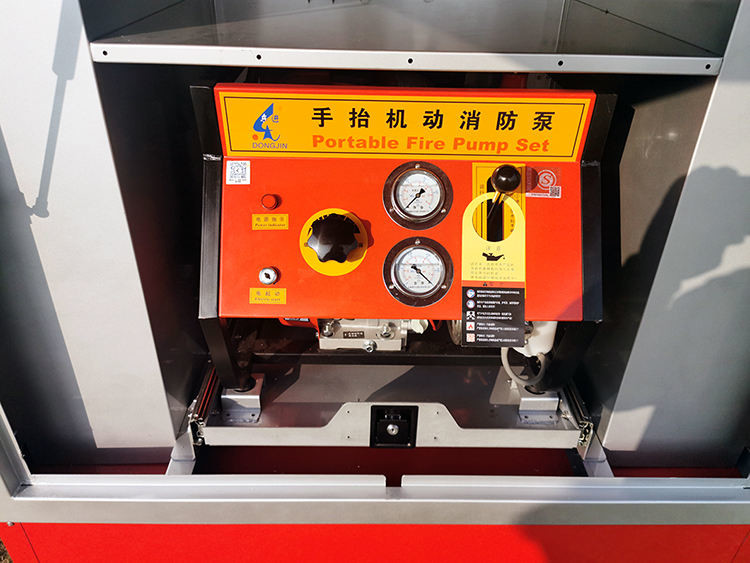

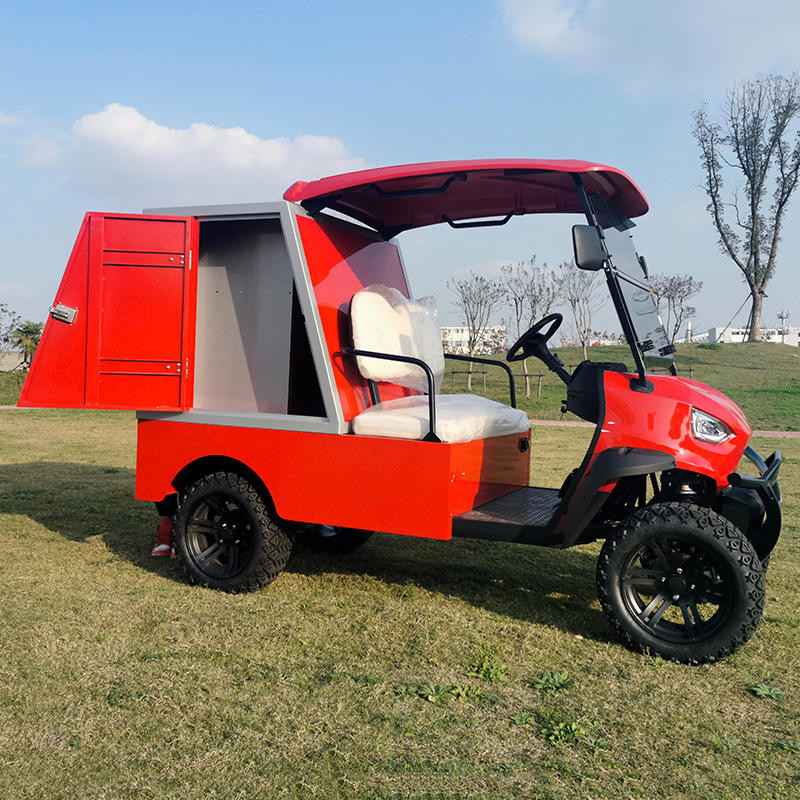

LS2040AF Small electric lithium 72v golf car fire fighter truck for emergency use is a Battery Powered Electric Fire Trucks. Some basic fire fighting equipment can be It can be stored inside the rear box.
The mini fire trucks can used in many places, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where is far from the fire fighting bureau or not convenient for big size fire fighting truck, for emergency cases.
|
SPECIFICATIONS OF Small electric lithium 72v golf car fire fighter truck for emergency use LS2040AF
|
||
|
Key Components
|
System
|
72V/5KW AC Syetem
|
|
Battery
|
72V115AH Lithium Battery
|
|
|
Motor
|
5KW AC Motor
|
|
|
Controller
|
AC controller
|
|
|
Performance
|
Passenger capacity
|
2
|
|
Range (loaded) based on flat road at a speed of 20km/h
|
>100km
|
|
|
Max. speed
|
32km/h (adjustable)
|
|
|
Minimum turning radius
|
4.5m
|
|
|
Max. climbing ability (loaded)
|
25%
|
|
|
Max. movement after brake at speed of 20km/h
|
≤4m
|
|
|
Rear water tank capacity
|
250L
|
|
|
Max. loading weight
|
480kgs
|
|
|
Net weight
|
580kgs
|
|
|
Dimensions
|
Overall dimensions
|
3600x1340x1990mm
|
|
Min. ground clearance
|
170mm
|
|
|
Wheelbase
|
2440mm
|
|
|
Front wheel tread
|
960mm
|
|
|
Rear wheel tread
|
1000mm
|
|
|
Body and Frame
|
||
|
Frame
|
Welded steel framework to be treated in galvanization and powder
|
|
|
Body
|
PP plastic front body + PP plastic rear body
|
|
|
Roof
|
PP injection (Black) or vacuum plastic
|
|
|
Windshield
|
Organic glass Windshield, hinged
|
|
|
Roof supports
|
Carbon Steel, powder coated
|
|
|
Backrest and Seat
|
Reborn Sponge, artificial leather + plastic armrest
|
|
|
Floor
|
Galvanized Steel plate and anti-slip rubber floor mat
|
|
|
Dashboard
|
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
|
|
|
Side trim
|
Plastic
|
|
|
Sider mirror
|
2pcs, foldable
|
|
|
Electric system
|
||
|
Lighting system and horn
|
All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
|
|
|
Backup Buzzer
|
12V
|
|
|
Digital meter
|
LCD Screen, with speedometer, odometer, battery power meter, and various indicators
|
|
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A
|
|
|
Steering and Suspension
|
||
|
Steering system
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
|
|
Brake system
|
4-wheel hydraulic brake front disc rear drum + foot park brake
|
|
|
Accelerator
|
Stepless speed change
|
|
|
Suspension system
|
Front macpherson independent and rear plate spring + vibration absorber
|
|
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
|
|
Rear axle
|
Integrated, Gear ratio 12.49:1
|
|
|
Wheel & Tyre
|

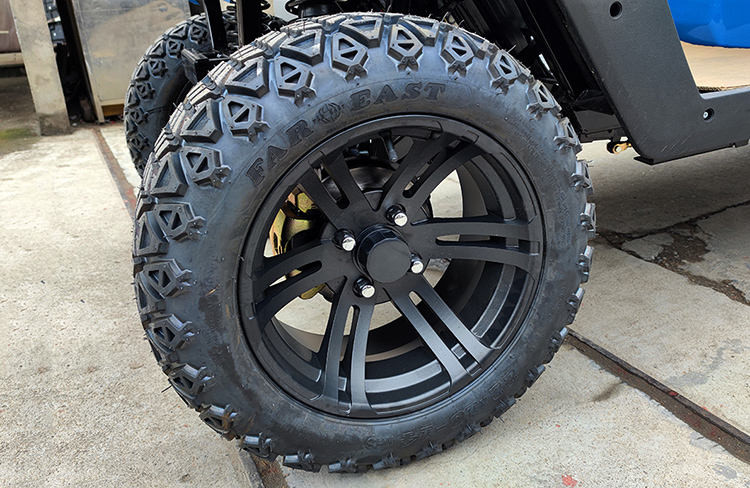

12x7 aluminum wheel + 23" tire(23*10.5-12)
|
|
