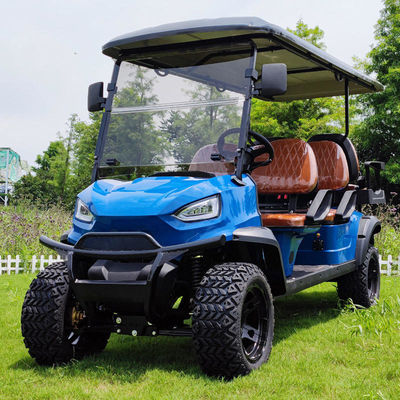

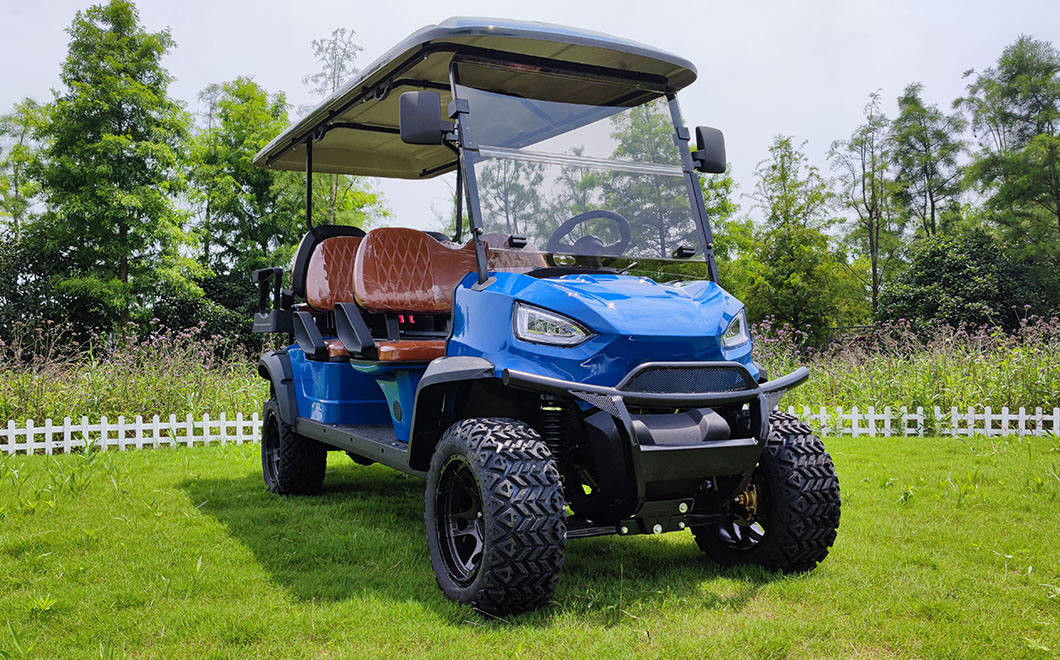

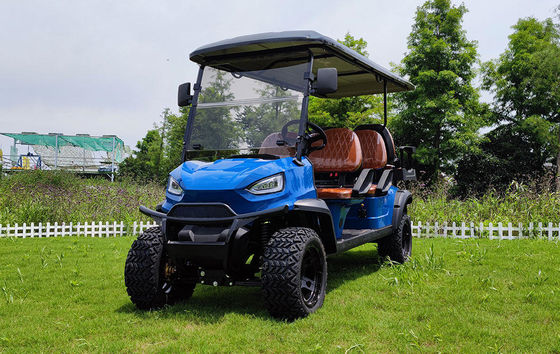

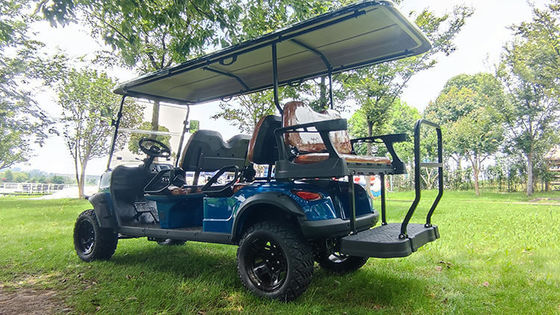

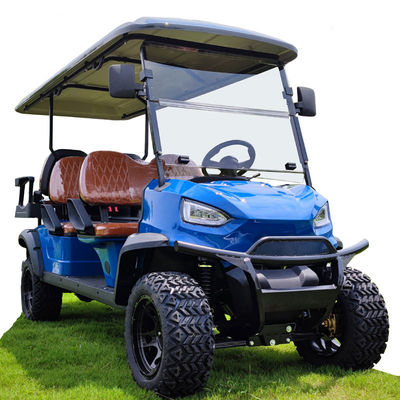

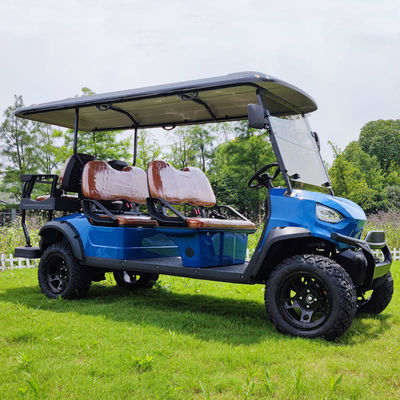

6 Seater Mini Off Road Club Car Golf Cart 480kgs Max Speed 50km/H 4 Wheel Drive
| Place of Origin | China |
|---|---|
| Brand Name | Customized |
| Model Number | LS2040ASZ |
| Minimum Order Quantity | 1 unit |
| Price | Negotiable |
| Packaging Details | in whole vehicle package |
| Delivery Time | to be negociated |
| Payment Terms | T/T,L/C |
| Supply Ability | to be negociated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | China | Fuel | Electric |
|---|---|---|---|
| Battery | 72V126AH Lithium Battery | Motor | 4/5/7KW AC Motor |
| Maximum Loading Weight | 480kgs | Minimum Turning Radius | 4.5m |
| Max. Movement After Brake | ≤4m | Charging Time | 5-7h |
| Highlight | 50km/H Off Road Club Car,480kgs Off Road Club Car,50km/H 6 Seater Off Road Golf Cart |
||
You can tick the products you need and communicate with us in the message board.
| Motor | 4/5/7KW AC motor | Fuel | electric | |
|---|---|---|---|---|
| Battery | 72V126AH Lithium Battery | No. of seats | 5-6 | |
| Break System | Front disc+Rear drum | Minimum Grand Clearance | 150-200mm | |
| Maximum Speed | 30-50km/h | Driving Mileage | ≥90km | |
| Standing Postion of Tail Caddie | Unequipped | Battery Voltage | 72V | |
| Wheelbase | 2440mm | Min. Ground clearance | 170mm | |
| Overall dimensions | 3600x1340x1990mm | Net weight | 550kgs |
Product Description
4 Wheel Drive 6 Seater Mini Off-Road Club Car Golf Cart At Max Speed 50km/H
4 wheel drive mini off road 72v lithium battery 6 seater club car golf cart

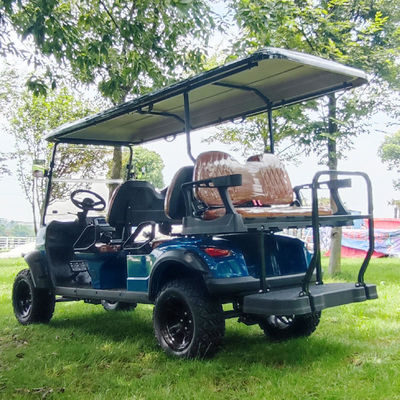

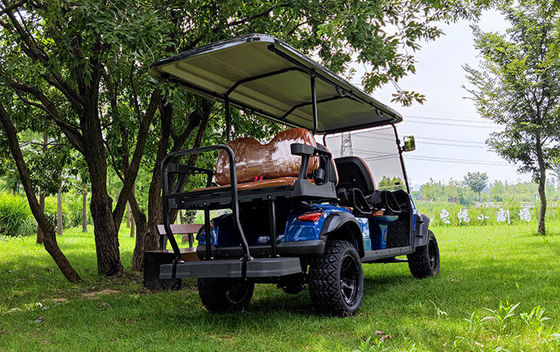

LS2040ASZ is a 4 wheel drive mini off road 72v lithium battery 6 seater club car golf cart, it's powered by lithium battery and 72V AC motor. The rear flip flop seat can be either used for people moving or cargo delivery. The big teeth off road tire makes it to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc..
Specification
|
SPECIFICATIONS OF 4 wheel drive mini off road 72v lithium battery 6 seater club car golf cart LS2040ASZ
|
||
|
Key Components
|
System
|
72V/5KW AC Syetem
|
|
Battery
|
72V115AH Lithium Battery
|
|
|
Motor
|
5KW AC Motor
|
|
|
Controller
|
AC controller
|
|
|
Performance
|
Passenger capacity
|
6
|
|
Range (loaded) based on flat road at a speed of 20km/h
|
>100km
|
|
|
Max. speed
|
32km/h (adjustable)
|
|
|
Minimum turning radius
|
4.5m
|
|
|
Max. climbing ability (loaded)
|
25%
|
|
|
Max. movement after brake at speed of 20km/h
|
≤4m
|
|
|
Max. loading weight
|
480kgs
|
|
|
Net weight
|
550kgs
|
|
|
Dimensions
|
Overall dimensions
|
3600x1340x1990mm
|
|
Min. ground clearance
|
170mm
|
|
|
Wheelbase
|
2440mm
|
|
|
Front wheel tread
|
960mm
|
|
|
Rear wheel tread
|
1000mm
|
|
|
Body and Frame
|
||
|
Frame
|
Welded steel framework to be treated in galvanization and powder
|
|
|
Body
|
PP plastic front body + PP plastic rear body
|
|
|
Roof
|
PP injection (Black) or vacuum plastic
|
|
|
Windshield
|
Organic glass Windshield, hinged
|
|
|
Roof supports
|
Carbon Steel, powder coated
|
|
|
Backrest and Seat
|
Reborn Sponge, artificial leather + plastic armrest
|
|
|
Floor
|
Galvanized Steel plate and anti-slip rubber floor mat
|
|
|
Dashboard
|
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
|
|
|
Side trim
|
Plastic
|
|
|
Sider mirror
|
2pcs, foldable
|
|
|
Electric system
|
||
|
Lighting system and horn
|
All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
|
|
|
Backup Buzzer
|
12V
|
|
|
Digital meter
|
LCD Screen, with speedometer, odometer, battery power meter, and various indicators
|
|
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A
|
|
|
Steering and Suspension
|
||
|
Steering system
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
|
|
Brake system
|
4-wheel hydraulic brake front disc rear drum + foot park brake
|
|
|
Accelerator
|
Stepless speed change
|
|
|
Suspension system
|
Front macpherson independent and rear plate spring + vibration absorber
|
|
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
|
|
Rear axle
|
Integrated, Gear ratio 12.49:1
|
|
|
Wheel & Tyre
|

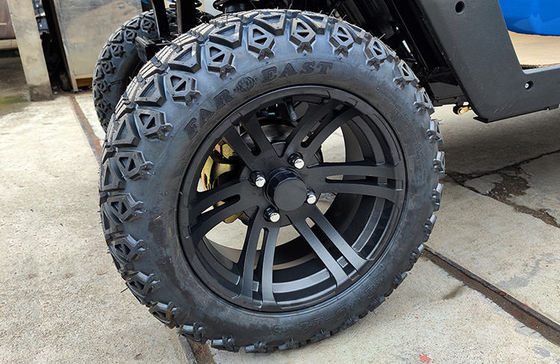

12x7 aluminum wheel + 23" tire(23*10.5-12)
|
|
