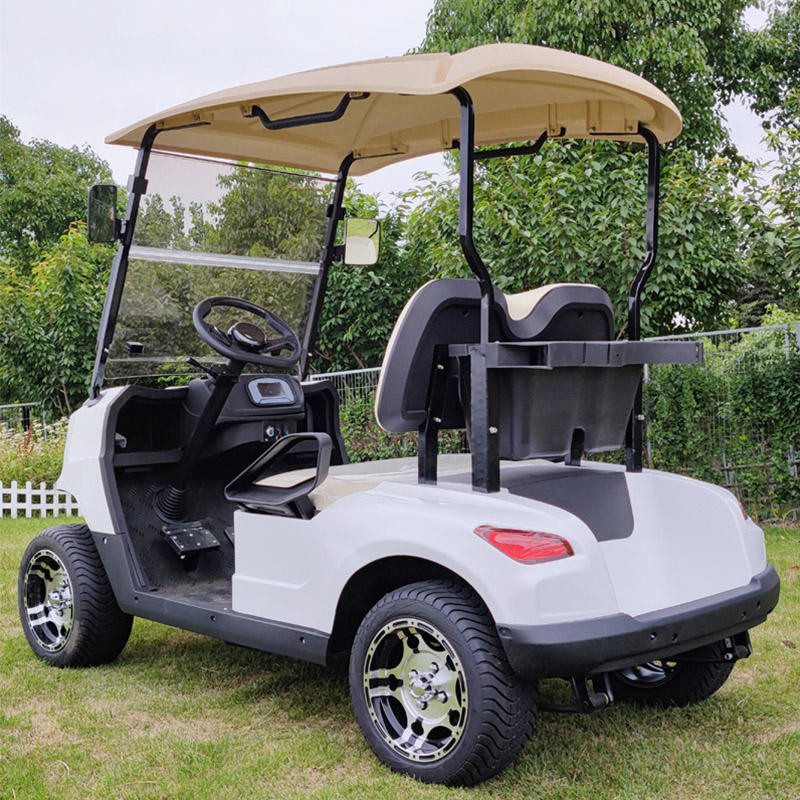

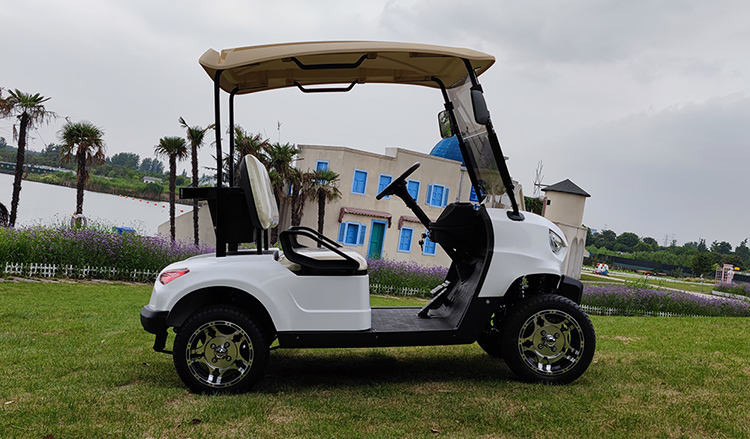

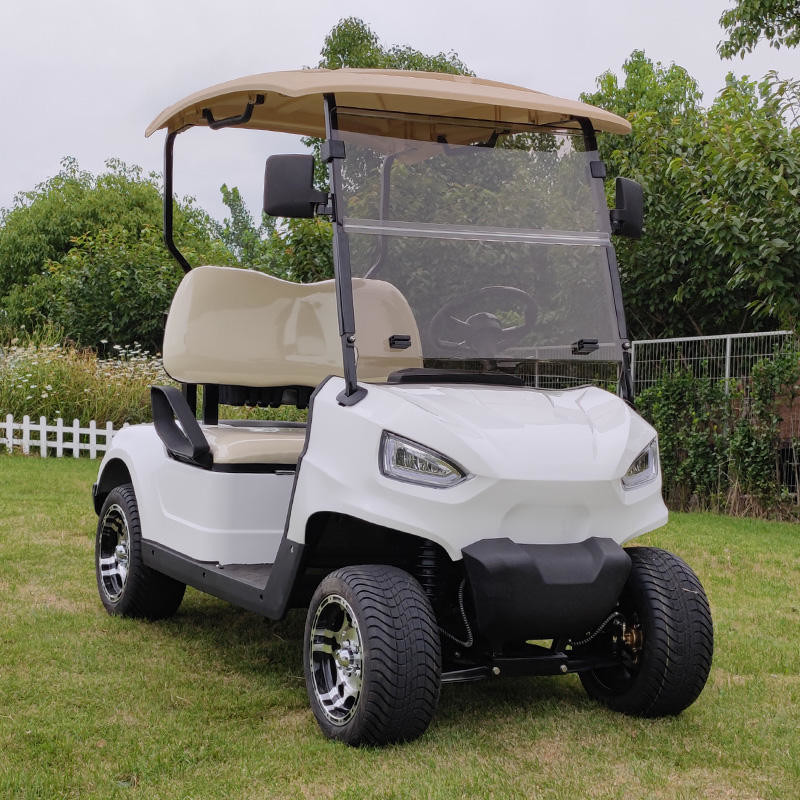

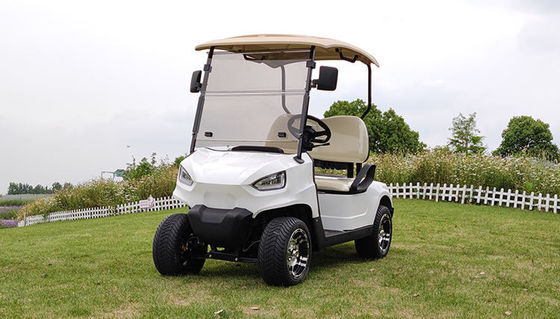

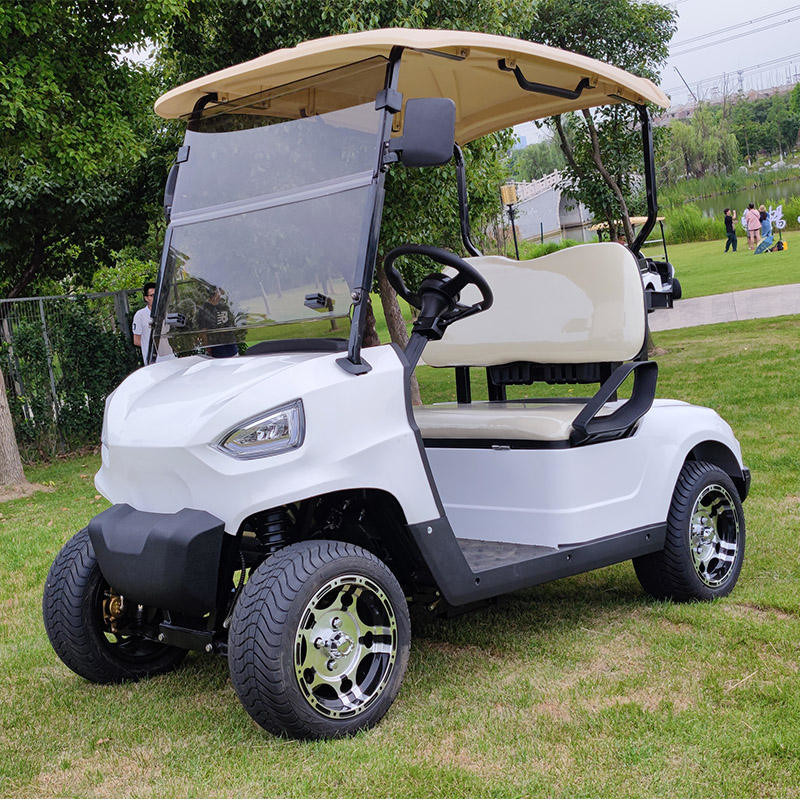

4x4 2 Seater Electric Ezgo Golf Cart 72V 5kw Mini Electric Club Car
Product Details:
| Place of Origin: | China |
| Brand Name: | Customized |
| Model Number: | LS2020K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | in whole vehicle package |
| Delivery Time: | to be negociated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | to be negociated |
|
Detail Information |
|||
| Place Of Origin: | China | Fuel: | Electric |
|---|---|---|---|
| Battery: | 72V115AH Lithium Battery | Motor: | 4/5/7KW AC Motor |
| Maximum Loading Weight: | 270kgs | Minimum Turning Radius: | 3.5m |
| Max. Movement After Brake: | ≤4m | Wheel: | 12x7 Alumimum Wheel |
| Controller: | AC Controller | ||
| Highlight: | 4x4 Electric Ezgo Golf Cart,72V Electric Ezgo Golf Cart,5kw Electric Club Car |
||
Product Description
72v 5kw Club Car 4x4 Mini 2 Seater Electric Ezgo Golf Cart With 200mm Minimum Grand Clearance
Model LS2020K 72v 5kw club car 4x4 mini 2 seater electric ezgo golf cart manufacturers is ezgo model electric golf cart. This model golf car cannot just be used in golf courses as traditional fleet golf cart, but also can be used in many other places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, for people moving, security patrol, etc.
Specification
|
SPECIFICATIONS OF 72v 5kw club car 4x4 mini 2 seater electric ezgo golf cart manufacturers LS2020K
|
|||
|
Key Components
|
System
|
72V/5KW AC Syetem
|
|
|
Battery
|
72V115AH Lithium Battery
|
||
|
Motor
|
5KW AC Motor
|
||
|
Controller
|
AC controller
|
||
|
Performance
|
Passenger capacity
|
2
|
|
|
Range (loaded) based on flat road at a speed of 20km/h
|
>120km
|
||
|
Max. speed
|
32km/h (adjustable)
|
||
|
Minimum turning radius
|
3.5m
|
||
|
Max. climbing ability (loaded)
|
25%
|
||
|
Max. movement after brake at speed of 20km/h
|
≤4m
|
||
|
Max. loading weight
|
270kgs
|
||
|
Net weight
|
390kgs
|
||
|
Dimensions
|
Overall dimensions
|
2400X1350X1950mm
|
|
|
Body and Frame
|
|
||
|
Frame
|
Welded steel framework to be treated in galvanization and powder
|
||
|
Body
|
PP plastic front body + PP plastic rear body
|
||
|
Roof
|
PP injection (Black) or vacuum plastic
|
||
|
Windshield
|
Organic glass Windshield, hinged
|
||
|
Roof supports
|
Carbon Steel, powder coated
|
||
|
Backrest and Seat
|
Reborn Sponge, artificial leather + plastic armrest
|
||
|
Floor
|
Galvanized Steel plate and anti-slip rubber floor mat
|
||
|

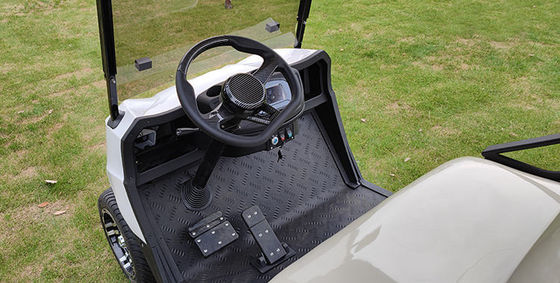

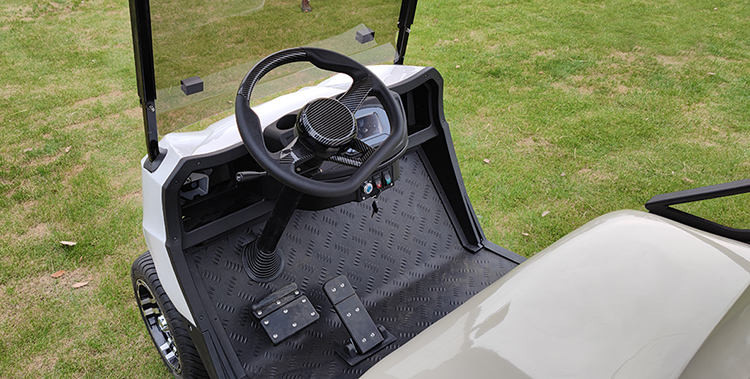

Dashboard
|
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
|
||
|
Side trim
|
Plastic
|
||
|
Sider mirror
|
2pcs, foldable
|
||
|
Electric system
|
|||
|
Lighting system and horn
|
All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
|
||
|
Backup Buzzer
|
12V
|
||
|
Digital meter
|
LCD Screen, with speedometer, odometer, battery power meter, and various indicators
|
||
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A
|
||
|
Steering and Suspension
|
|||
|
Steering system
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
||
|
Brake system
|
4-wheel hydraulic brake front disc rear drum + foot park brake
|
||
|
Accelerator
|
Stepless speed change
|
||
|
Suspension system
|
Front macpherson independent and rear plate spring + vibration absorber
|
||
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
||
|
Rear axle
|
Integrated, Gear ratio 12.49:1
|
||
|

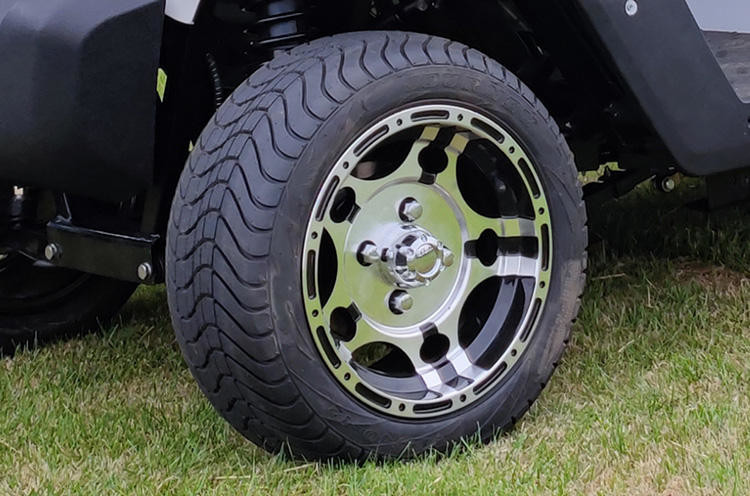

Wheel & Tyre
|
12x7 aluminum wheel + 23" tire(23*10.5-12)
|
||
