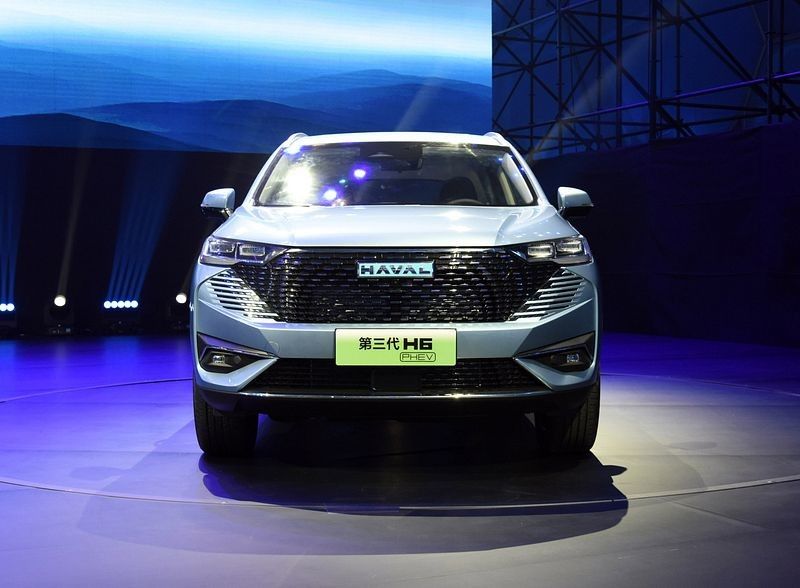

1.5T Compact EV SUV 110Km Plug In Hybrid 4 Wheels HAVAL H6 DHT PHEV
Product Details:
| Place of Origin: | China |
| Brand Name: | Haval |
| Model Number: | Haval H6 DHT PHEV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | in whole vehicle package |
| Delivery Time: | to be negociated |
| Payment Terms: | T/T,L/C |
| Supply Ability: | to be negociated |
|
Detail Information |
|||
| Brand Name: | Haval H6 DHT PHEV | Fuel Of Energy: | Plug-in Hybrid |
|---|---|---|---|
| Engine: | 1.5T 154 Hp + Electric Motor 130 Kw | Gearbox: | 2filesDHT |
| Battery Type: | Lithium Iron Phosphate Battery | Fast/slow Charging Time: | 0.5h/2.6h |
| Displacement (cc): | 1944 | Maximum Torque: | 300N.m |
| Battery Capacity (kWh): | 9.4kwh | NEDC: | 56km |
| Highlight: | 1.5T Compact EV SUV,110Km Compact EV SUV,HAVAL H6 DHT PHEV |
||
Product Description
HAVAL H6 1.5T DHT-PHEV 110Km Plug in Hybrid Cheapest Compact SUV 4 Wheels Adults Cars
Haval's new plug-in hybrid family SUV has more power than a Honda Civic Type R hot hatch and more electric range than some all-electric cars
Powering the H6 PHEV is the same 1.5-litre turbocharged petrol four-cylinder as the standard Hybrid (reported to produce 125kW/285Nm), paired to an upgraded electric motor for combined outputs of 240kW and 530Nm – a significant boost over the standard H6 Hybrid's 179kW/530Nm, and the MG HS PHEV's 189kW/370Nm.
Despite offering more power and torque than most hot hatches, the plug-in hybrid H6 is only front-wheel drive – with the tyres spun through Haval's Direct Hybrid Transmission (DHT), incorporating electrified elements into a dual-clutch automatic design.
A battery of unspecified capacity – possibly the 41.8kWh pack in the Coffee 01, a new vehicle from GWM sub-brand Wey – delivers a claimed 201km of all-electric driving range!
Specification
|
body
|
|
|||
|
length*Width*Height(mm):
|
4683*1886*1730
|
4683*1886*1730
|
4683*1886*1730
|
|
|
wheelbase(mm):
|
2738
|
2738
|
2738
|
|
|
Number of doors/seats (indivual):
|
5/5
|
5/5
|
5/5
|
|
|
Fuel tank capacity(L):
|
55
|
55
|
55
|
|
|
luggage compartment volume(L):
|
560-1485
|
560-1485
|
560-1485
|
|
|
curb weight(kg):
|
1790
|
1850
|
1850
|
|
|
Minimum ground clearance(mm):
|
135
|
135
|
135
|
|
|
approach angle(°):
|
20
|
20
|
20
|
|
|
departure angle(°):
|
27
|
27
|
27
|
|
|
engine
|
|
|||
|
engine model:
|
GW4B15D
|
GW4B15D
|
GW4B15D
|
|
|
Displacement(L):
|
1.5
|
1.5
|
1.5
|
|
|
cylinder volume(cc):
|
1499
|
1499
|
1499
|
|
|
Intake form:
|
turbocharged
|
turbocharged
|
turbocharged
|
|
|
number of cylinders(indivual):
|
4
|
4
|
4
|
|
|
Cylinder arrangement:
|
Inline
|
Inline
|
Inline
|
|
|
Valves per cylinder(indivual):
|
4
|
4
|
4
|
|
|
Valve structure:
|
double overhead
|
double overhead
|
double overhead
|
|
|
Maximum horsepower(ps):
|
154
|
154
|
154
|
|
|
Maximum power(kW/rpm):
|
113.0/5500-6000
|
113.0/5500-6000
|
113.0/5500-6000
|
|
|
Maximum torque(N·m/rpm):
|
233.0/1500-4000
|
233.0/1500-4000
|
233.0/1500-4000
|
|
|
fuel:
|
92gasoline
|
92gasoline
|
92gasoline
|
|
|
Fuel supply method:
|
direct injection
|
direct injection
|
direct injection
|
|
|
Cylinder head material:
|
aluminum alloy
|
aluminum alloy
|
aluminum alloy
|
|
|
Cylinder material:
|
aluminum alloy
|
aluminum alloy
|
aluminum alloy
|
|
|
Emission Standards:
|
countryVI
|
countryVI
|
countryVI
|
|
|
electric motor
|
|
|||
|
Ministry of Industry and Information Technology's pure electric cruising range(km):
|
55
|
110
|
110
|
|
|
Motor type:
|
permanent magnet/Synchronize
|
permanent magnet/Synchronize
|
permanent magnet/Synchronize
|
|
|
Total motor power(kW):
|
130
|
130
|
130
|
|
|
Total Motor Torque(N·m):
|
300
|
300
|
300
|
|
|
Number of motors:
|
1
|
1
|
1
|
|
|
Motor layout:
|
Front
|
Front
|
Front
|
|
|
The maximum power of the front motor(kW):
|
130
|
130
|
130
|
|
|
Front motor maximum torque(N·m):
|
300
|
300
|
300
|
|
|
Battery type:
|
Lithium iron phosphate battery
|
Ternary lithium battery
|
Ternary lithium battery
|
|
|
battery capacity(kWh):
|
9.4
|
19.94
|
19.27
|
|
|
Power consumption per 100 kilometers(kWh/100km):
|
11.6
|
17.2
|
|
|
|
Battery Pack Warranty:
|
Unlimited number of years for the first owner/mileage
|
Unlimited number of years for the first owner/mileage
|
Unlimited number of years for the first owner/mileage
|
|
|
Charging Compatibility:
|
-
|
-
|
Special charging pile+Public charging pile
|
|
|
charging method:
|
none
|
none
|
fast charge+slow charge
|
|
|
fast charge time(Hour):
|
|
|
0.5
|
|
|
slow charge time(Hour):
|
|
|
2.6
|
|
|
Quick charge(%):
|
|
|
80
|
|
|
gearbox
|
|
|||
|
Number of gears:
|
2
|
2
|
2
|
|
|
Gearbox type:
|
DHT
|
DHT
|
DHT
|
|
|
chassis steering
|
|
|||
|
Drive mode:
|
front drive
|
front drive
|
front drive
|
|
|
Body structure:
|
Unibody
|
Unibody
|
Unibody
|
|
|
Power Steering:
|
electric assist
|
electric assist
|
electric assist
|
|
|
Front Suspension Type:
|
McPherson independent suspension
|
McPherson independent suspension
|
McPherson independent suspension
|
|
|
Rear Suspension Type:
|
Multi-link independent suspension
|
Multi-link independent suspension
|
Multi-link independent suspension
|
|
|
wheel brake
|
|
|||
|
Front/Rear Brake Type:
|
Ventilated Disc
|
Ventilated Disc
|
Ventilated Disc
|
|
|
Parking Brake Type:
|
electronic handbrake
|
electronic handbrake
|
electronic handbrake
|
|
|
Front/Rear tire specifications:
|
235/55 R19
|
235/55 R19
|
235/55 R19
|
|
|
Hub material:
|
aluminum alloy
|
aluminum alloy
|
aluminum alloy
|
|
|
Spare tire specifications:
|
tire repair tool only
|
tire repair tool only
|
tire repair tool only
|
|
